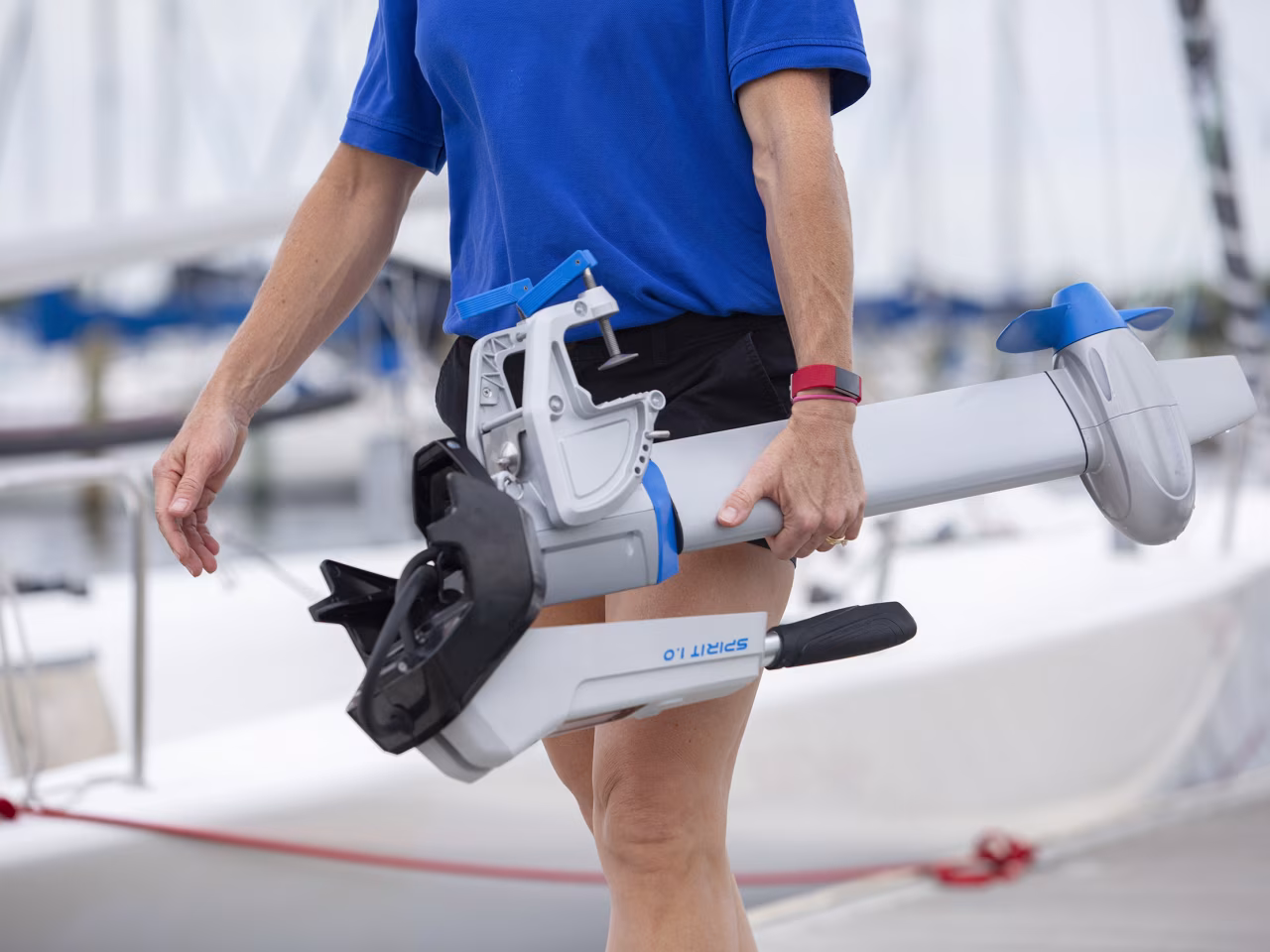

The Spirit 1.0 Plus is a versatile 1kW electric outboard engineered for a wide range of vessels, from dinghies and tenders to fishing boats and small sailboats. Compact yet powerful, it is equipped with a high-capacity 1,276 Wh integrated lithium battery, delivering extended range and reliable performance on the water. Combining lightweight construction, responsive handling, and clean energy, the Spirit 1.0 Plus sets a benchmark in portable electric propulsion.
The EVO model enhances this capability with a hydrogeneration function, allowing the battery to recharge while under sail.
Interested in learning more about EPROPULSION engines?
Contact us to schedule an appointment at our showroom, where we will be happy to answer all your questions and help you choose a boat that will meet all your needs and desires.
| TRANSOM HEIGHT | SHAFT LENGTH |
|---|---|
| 30-40 cm / 11.8-15.7 inches | Extra Short* |
| 40-50 cm / 15.7-19.7 inches | Short |
| Higher than 50 cm / 19.7 inches | Long |

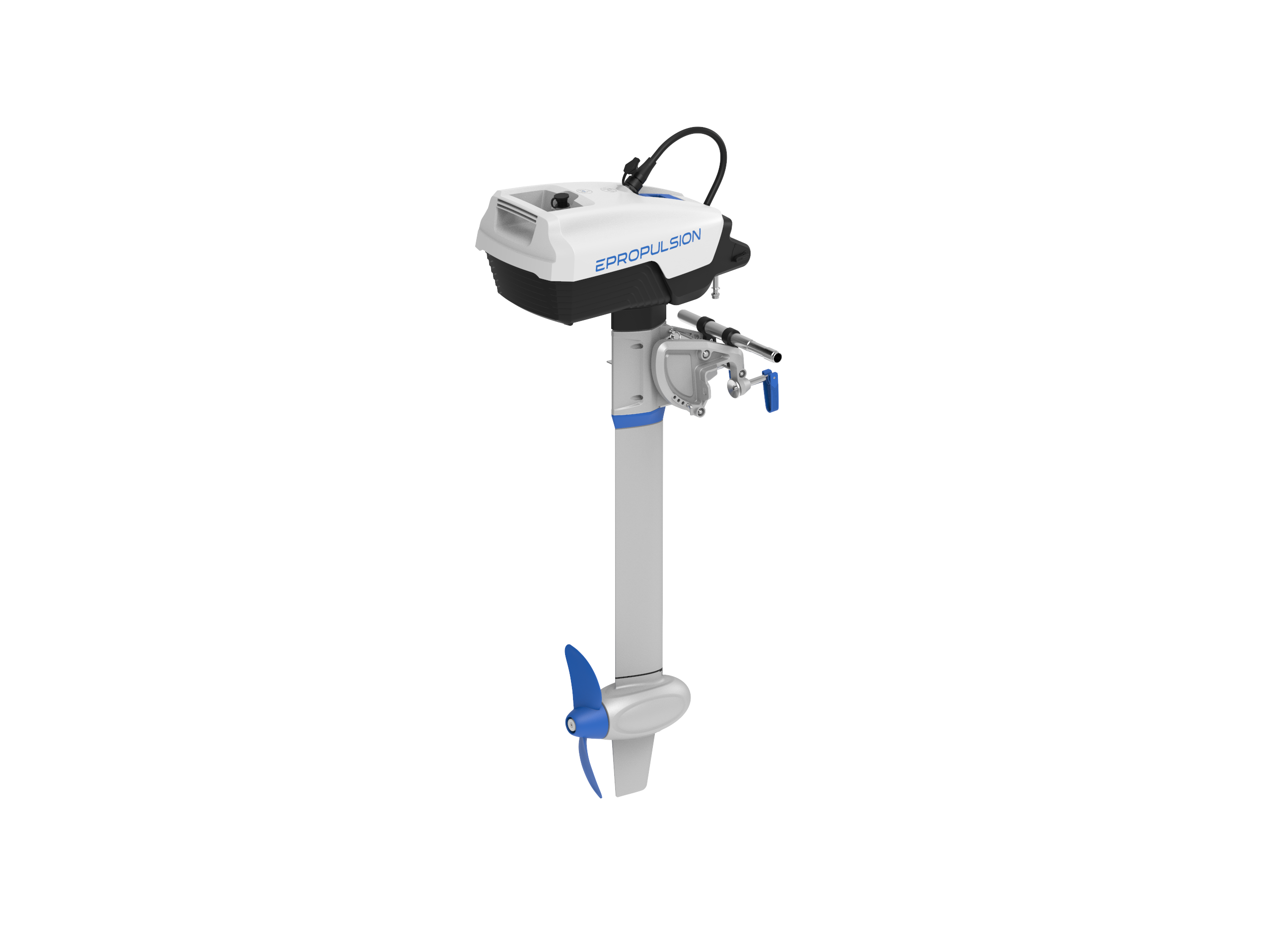

| PLUS | EVO | EVO REMOTE | |
|---|---|---|---|
| Power | 1 kW (3HP equivalent**) | 1 kW (3HP equivalent**) | 1 kW (3HP equivalent**) |

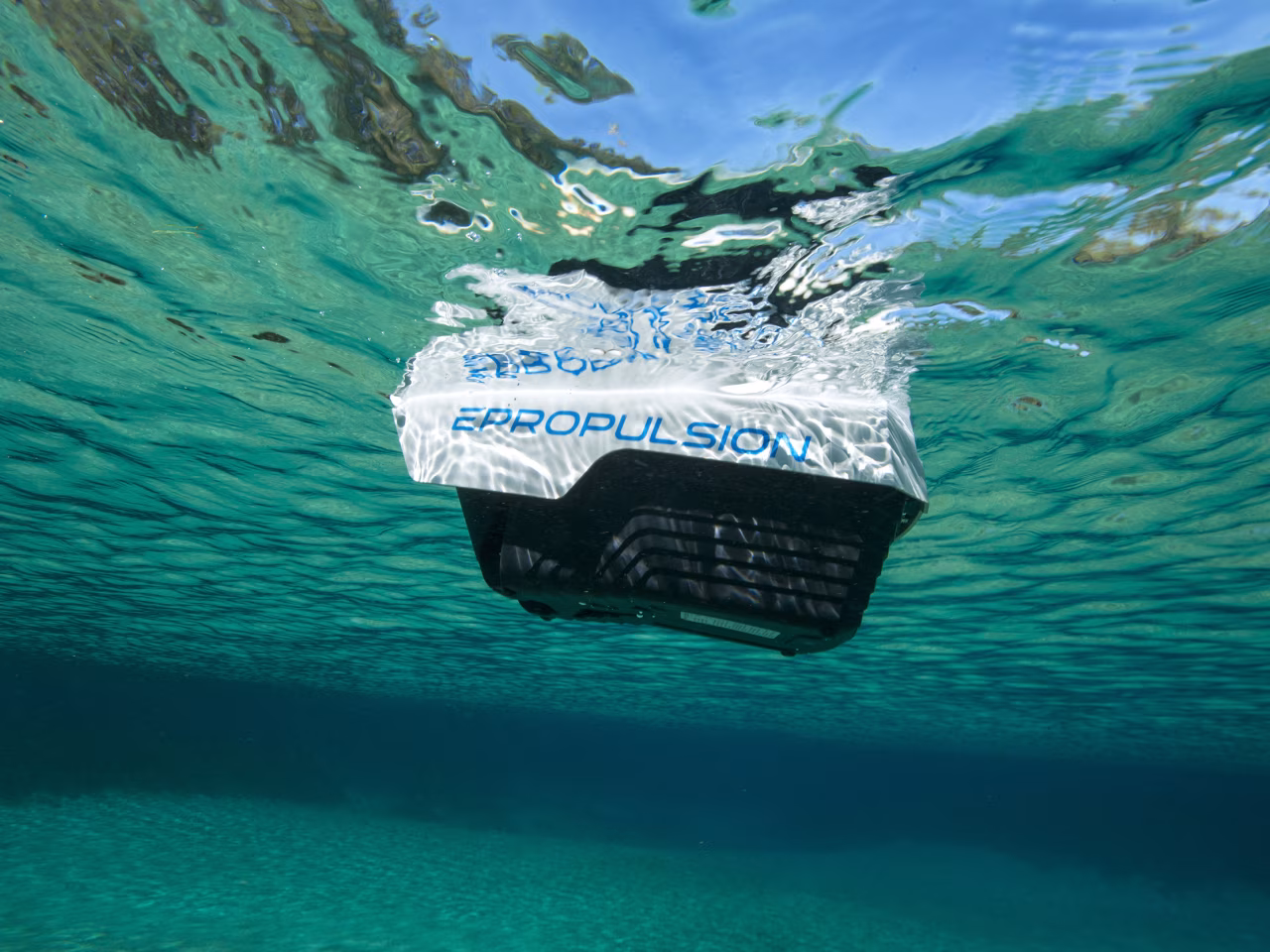

| Standard Battery | Spirit Battery Plus, 1276 Wh li-ion polymer | Spirit Battery Plus, 1276 Wh li-ion polymer | Spirit Battery Plus, 1276 Wh li-ion polymer |
| Input Voltage | 39V – 60V | 39V – 60V | 39V – 60V |
| Motor Weight* | 10.6 kg / 23.4 lbs | 11.3 kg / 24.9 lbs | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs | 8.7 kg / 19.2 lbs | 8.7 kg / 19.2 lbs |
| Standard Charging | 8.5 Hrs | 8.5 Hrs | 8.5 Hrs |
| Fast Charging | 3.5 Hrs | 3.5 Hrs | 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended | Yes, and E-Series Battery recommended | Yes, and E-Series Battery recommended |

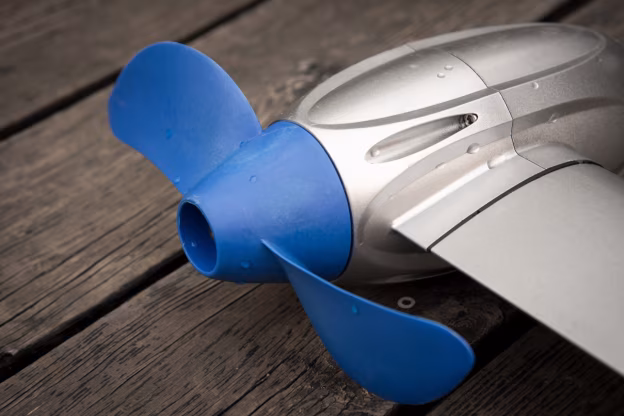

| Propeller | 11" × 5.8" 2-blade composite propeller | 11" × 5.8" 2-blade composite propeller | 11" × 5.8" 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 70° | 0°, 7°, 14°, 21° / 85° | 0°, 7°, 14°, 21° / 85° |
| Shaft Length | Extra Short, Short, Long | Short, Long | Short, Long |

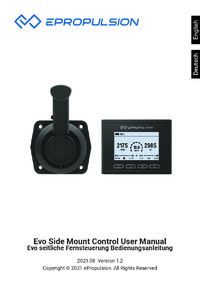

| Control | Tiller | Evo Tiller | Evo Top Mount Control Evo Side Mount Control Evo Dual Remote Control |
| Hydrogeneration | No | Yes | Yes |
| Motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Direct Drive | Yes | Yes | Yes |
Our electric outboards deliver smooth, effortless handling while keeping you updated with key operating information.
1. Digital Display
Stay in control with real-time data on power output, remaining runtime, battery level, operating voltage, and more.
2. Electric Start
Get underway at the press of a button, eliminating the hassle of pull starts on cold mornings.
3. Magnetic Kill Switch
Enhances safety by instantly shutting down the motor in case of emergency.
4. Stepless throttle changing
Enjoy precise and seamless throttle response in both forward and reverse.
5. Max Power Output Adjustment
Set maximum throttle limits for added safety, making it ideal for children or rental use.
6. Ambidextrous Operation
Designed for comfort, the throttle can be operated easily with either the left hand or the right hand.
| POWER (W) | SPEED (MPH/KPH) | RUNTIME (HH:MM) | RANGE (MILE/KM) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1,000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
