The X-Series is a breakthrough in marine electric propulsion, setting new standards for performance, efficiency, and sustainability. Precision-engineered and developed through advanced research and innovation, it combines high power density with intelligent control systems and a cutting-edge design. The result is a propulsion solution that delivers maximum reliability, effortless handling, and a cleaner, more exciting boating experience.
Interested in learning more about EPROPULSION engines?
Contact us to schedule an appointment at our showroom, where we will be happy to answer all your questions and help you choose a boat that will meet all your needs and desires.

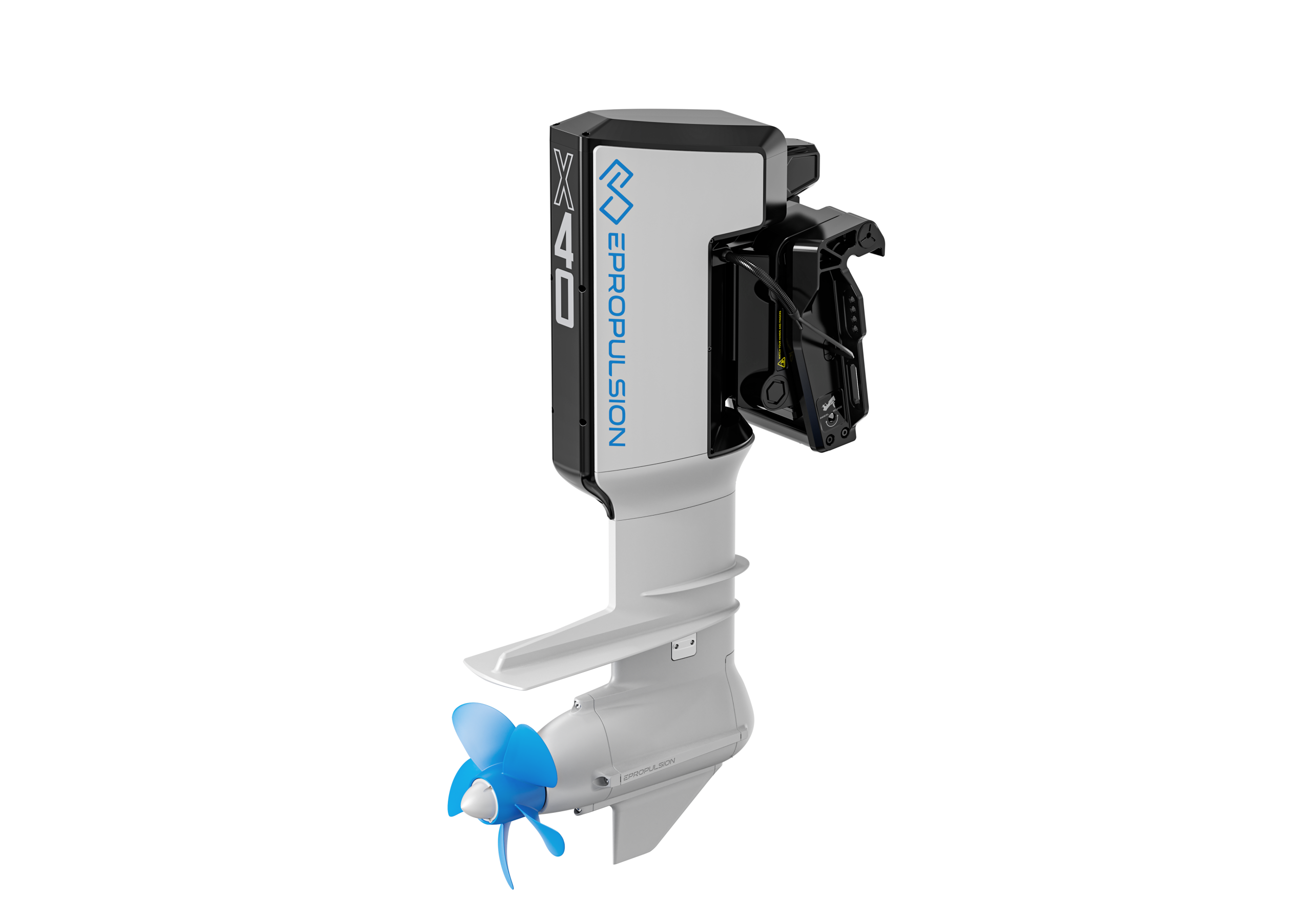

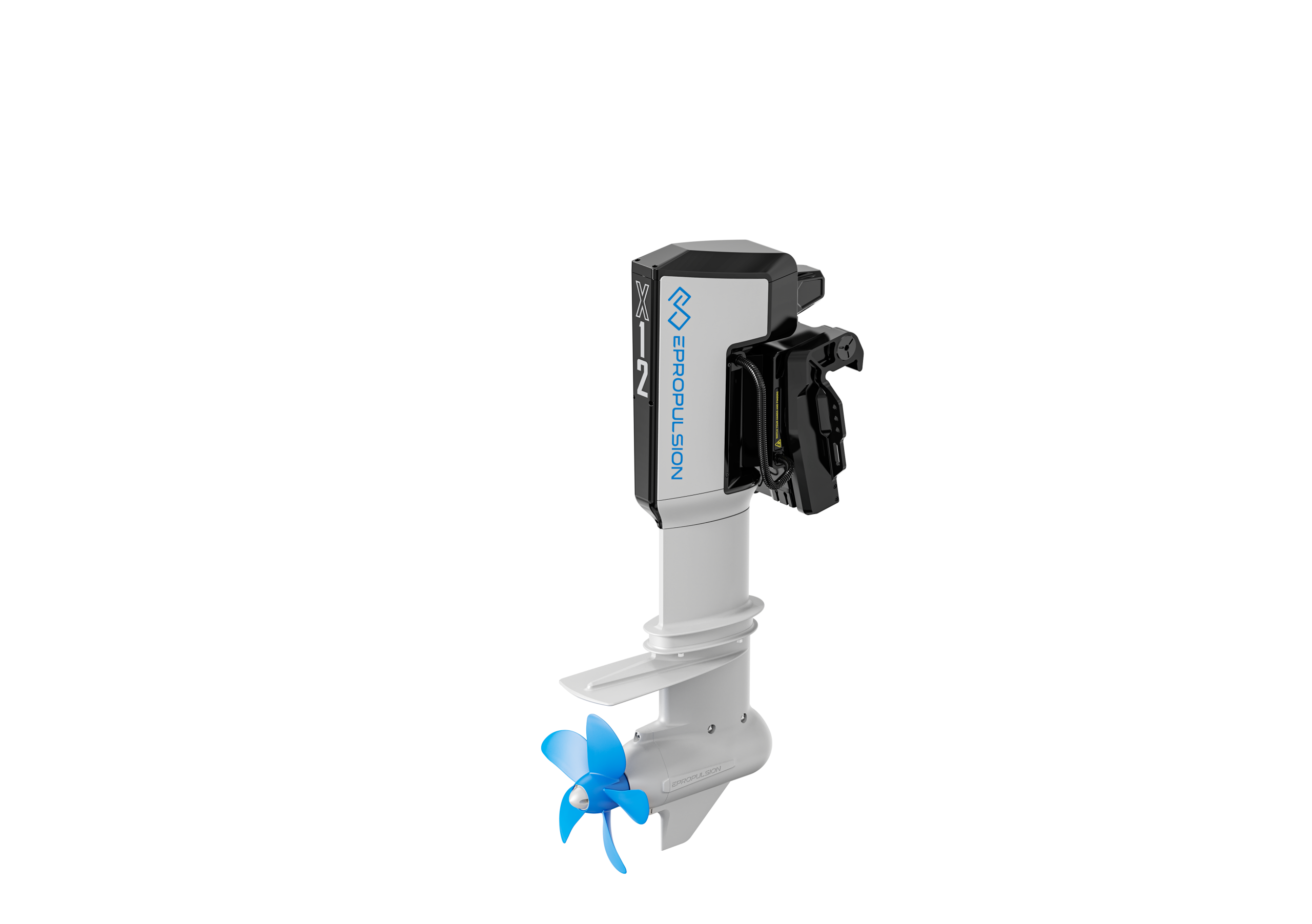

| X-40 | X-20 | X-12 | ||||
|---|---|---|---|---|---|---|
| L Shaft | XL Shaft | L Shaft | XL Shaft | S Shaft | L Shaft | |
| Weight | 99 kg | 101.5 kg | 79 kg | 81 kg | 48 kg | 50 kg |
| Shaft Length | 508 mm (20") | 635 mm (25") | 508 mm (20") | 635 mm (25") | 381 mm (15") | 508 mm (20") |
| Dimensions (L × W × H) | 757 × 360 × 1233 mm | 757 × 360 × 1360 mm | 674 × 360 × 1229 mm | 674 × 360 × 1356 mm | 560 × 266 × 978 mm | 560 × 266 × 1105 mm |
| Input power | 40 kW | 20 kW | 12 kW | |||
| Nominal voltage | 96 VDC | 96 VDC | 96 VDC | |||
| Cooling System | Closed Loop Liquid Cooling | Natural cooling | Natural cooling | |||
| Rated rotational speed | 1500 - 2100 rpm | 1200 - 1800 rpm | 1100 - 2000 rpm | |||
| Trim & Tilt | Power Trim/Tilt | Power Trim/Tilt | Power Trim/Tilt | |||
| Trim/Tilt Angle | -4° to 61° | -4° to 61° | -4° to 61° | |||
| Steering | Integrated electric steering | Integrated electric steering | Integrated electric steering | |||
| Steering Angle | ±45° | ±45° | ±45° | |||
| Propeller | 15" × 10 3/4" (available in L&R rotation) 13 3/8" × 16 3/4" (available in L&R rotation) | 15" × 10 3/4" (available in L&R rotation) 13 3/8" × 16 3/4" (available in L&R rotation) | 11 13/16" × 10 5/8" (available in L&R rotation) 11 7/16" × 14 3/16" (available in L&R rotation) |
|||
SPACE-SAVING
With a design that occupies 60% less space than traditional combustion engines, the X-Series motors provide greater installation flexibility while freeing up valuable onboard space for passengers and equipment.
LIGHTER WEIGHT
The X-Series motors weigh up to 65% less than conventional combustion engines and 30% less than comparable electric inboards. This reduction makes installation easier, enhances performance on the water, and improves overall efficiency for a wide range of vessels.
HYDROGENERATION
All X-Series models are equipped with integrated hydrogeneration, enabling the battery to recharge by capturing electricity from water flow while sailing.
EASY TO INSTALL
Pre-connected internal wiring provides a true plug-and-play setup, making installation straightforward and allowing for immediate use upon delivery.
EASY TO MAINTAIN
With advanced technology and carefully engineered interfaces, X-Series motors require significantly less maintenance than traditional combustion engines, reducing downtime and ongoing costs.
EASY TO OPERATE
A unified throttle and display panel deliver a seamless, intuitive driving experience. The smart control system adapts to the user’s input, making operation effortless and precise.
